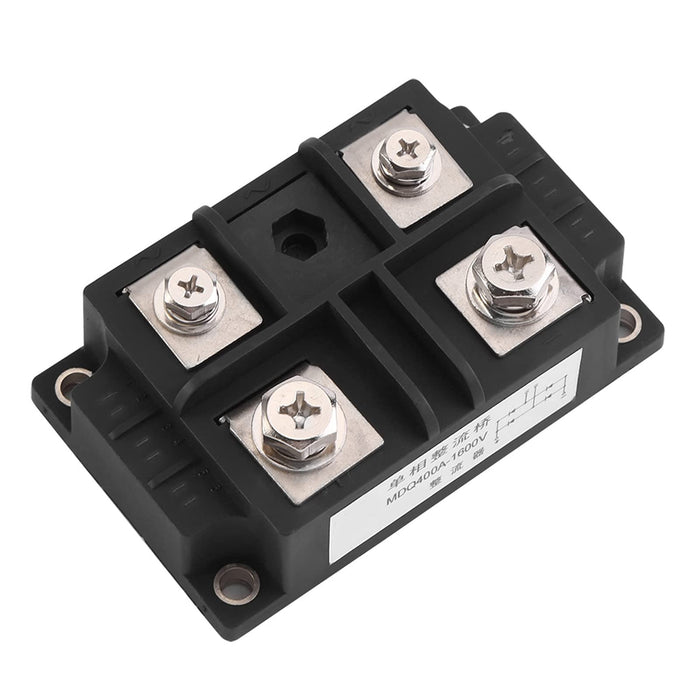

Single Phase Diode Bridge Rectifier 400A 1600V High Power 4 Terminals Current Conversion Module

Brand: Hilitand

Features:

• 【HIGH QUALITY】 High quality bridge rectifiers used for conversion of an alternating current input into a direct current output.
• 【GREAT PERFORMANCE】 Single-phase diode bridge rectifier has a large over-current capacity, good heat dissipation and low voltage drop.
• 【WELL WELDED】 Well welded structure with good temperature and power cycle ability ensures a more stable performance.
• 【FOR SINGLE PHRASE RECTIFICATION】 Designed for single phase rectification, output DC current is 400A.
• 【WIDELY USED】 The high power bridge rectifier can be widely used for power supply, widely used.

Part Number: Hilitand6dyswn7ou1

Details: Specifications:
Output Current: 400A
Three Phase Input Positive Average Current: 135A
Repetitive Peak Reverse Voltage(VRRM): 1600V
Repetitive Peak Inverse Current(IRRM): 10mA
Isolation Voltage(Viso): 2500VAC
VTM: 1.5V
ITM: 400A
Phase: Single Phase
Terminals: 4
Max. Junction Temperature: 150
Size: 110 x 68 x 34mm / 4.33 x 2.67 x 1.33"
Quantity: 1

Package Includes:
1 x Bridge Rectifier

EAN: 0763741188849

Package Dimensions: 5.8 x 4.0 x 1.9 inches
