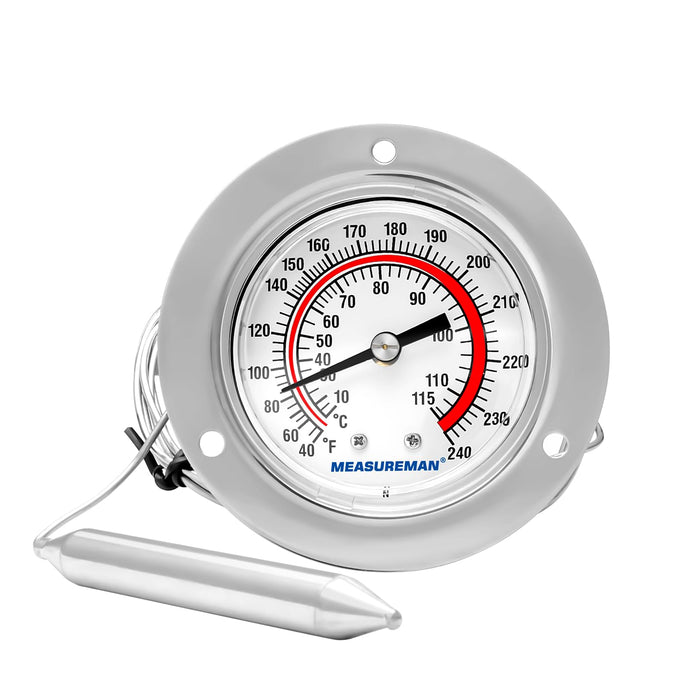

MEASUREMAN Vapor Capillary Flanged Panel Mount Refrigeration Thermometer, 2" Dial, 48" Capillary, 40-240 deg F/ 10-115 deg C, Re-Calibration Available

Brand: MEASUREMAN

Features:

• For temperature measuring on refrigeration equipment, chilled systems etc
• 2" dial size, with 3 hole front flange
• bulb dia 9.5mm x 91.5mm length
• 48" copper capillary
• "Range: 40-240 deg F/10-115 deg C, reading can be re-calibrated"

model number: MC051

Part Number: MC051

Details: Description

For temperature measuring on refrigeration equipment, chilled systems etc Vapor Capillary Flanged Panel Mount Refrigeration Thermometer,
Working principle: vapor actuated
Dial: 2” dial diameter
Case:304 stainless steel case with three holes of front flange
Inside: Copper alloy bourdon tube, brass movement
Mounting: Back connection, with front flange
Capillary: 48” copper wire lead
Bulb: diameter 9.5x91.5mm copper
Window: polycarbonate
Accuracy:+/-2.5%
Range: 40-240 deg F/10-115 deg C

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.

Package Dimensions: 3.7 x 3.6 x 3.0 inches
