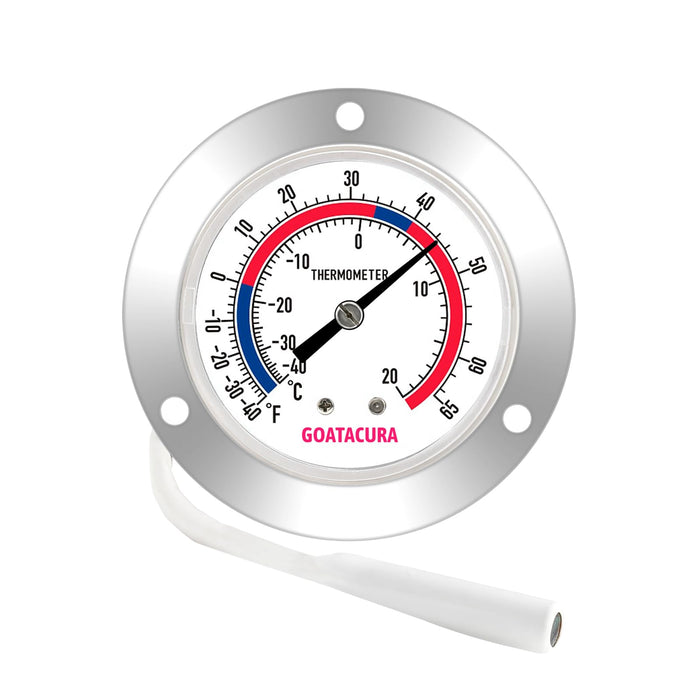

GOATACURA Vapor Capillary Refrigeration Thermometer, Stainless Steel Flanged Panel Mount, 2" Dial Size, 48" Capillary, -40-65 Deg F/-40-20 Deg C

Brand: GOATACURA

Features:

• 【Application】For measuring the temperature of refrigeration equipment, chilled system, etc.
• 【Features】304 stainless steel case corrosion resistance with durable structure, vapor capillary tube design, vapor actuated working principle.
• 【Parameter】2" dial size, 48" copper capillary, 8x56mm copper bulb
• 【Range】-40-65 Deg F/-40-20 Deg C, dual scale
• 【Accuracy】+/-2%, comply with ASME B40.4 (Grade B) standard, with accuracy test report.

model number: GB005

Part Number: GB005

Details: Description
GOATACURA vapor capillary refrigeration thermometer for measuring the temperature of refrigeration equipment, chilled system, etc.
Dial Size: 2"
Temperature Range: -40-65 Deg F/-40-20 Deg C, dual scale
Accuracy: +/-2%, comply with ASME B40.4 (Grade B) standard, with accuracy test report
Working Principle: Vapor actuated
Capillary Outlet: Back mount
Capillary: 48" copper capillary, with white plastic shell
Bulb: 8x56mm copper bulb
Case: 304 stainless steel case, with three holes front flange
Bourdon Tube: Copper alloy
Movement: Brass
Dial: Aluminum, white
Pointer: Aluminum, black
Window: Polycarbonate

GOATACURA is committed to research, develop and produce of temperature, pressure equipment etc suitable for various fields. GOATACURA pursues high-quality, high-accuracy and better service. We pay high attention to the feedback and needs of users. We continue to learn and innovate, and create better products.

Package Dimensions: 3.6 x 3.5 x 3.1 inches
