Elikliv NanoVNA-H Vector Network Analyzer, 10KHz -1.5GHz Latest HW Version 3.6 VNA Analyzer, HF VHF UHF Antenna Analyzer Measuring S Parameters, VSWR and Peak Analysis, Phase, Delay, Smith Chart

Name: Elikliv NanoVNA-H Vector Network Analyzer, 10KHz -1.5GHz Latest HW Version 3.6 VNA Analyzer, HF VHF UHF Antenna Analyzer Measuring S Parameters, VSWR and Peak Analysis, Phase, Delay, Smith Chart
Brand: kate-minimalist
Price: 119.98 USD
Availability: InStock

by kate-minimalist

$119.98 - $119.98

$119.98

$119.98 - $119.98

$119.98

Description

✅[Upgraded NanoVNA-H HW V3.6]: The Upgraded V3.6 Antenna Analyzer widened frequency scan range (10KHz-1.5GHz) to measure RF S11 (reflection), S21 (forward gain), and related parameters. Designed with a SD Card Port, this new nanovna is convenient for your data storage and sharing.
✅[Improved Performance & Built Quality]: With outstanding performance, the display quality is very crisp.This nanoVNA is perfect for evaluating antenna resonance and SWR, touch screen is responsive and can by navigated with a finger. With good accuracy and built in 650mAh rechargeable battery, can be used in ham radio shack.
✅[[PC Control]: This nanoVNA can be controled by PC using software VNA Saver. The software has a number of features such as the ability to run many smaller frequency sweeps (the nanoVNA takes 101 measurements across a sweep) and combine the results to get a higher resolution sweep.
✅[Multiple Functions]: There are also averaging functions and allows you to do time domain reflectometry which can be useful for detecting damaged cable runs. It also allows easier readoff of datapoints using markers.
✅[Great Choice for Radio Operator or Enthusiast]: This spectrum analyzer will be a nice little addition to the workbench, which is a very handy analyzer for the amateur radio operator or radio enthusiast. The smith chart is very handy to have as well as being able to see reflected db. You get a lot of information from this little unit, connect it to your PC and is able to save a .cal file for a certain frequency which saves your time

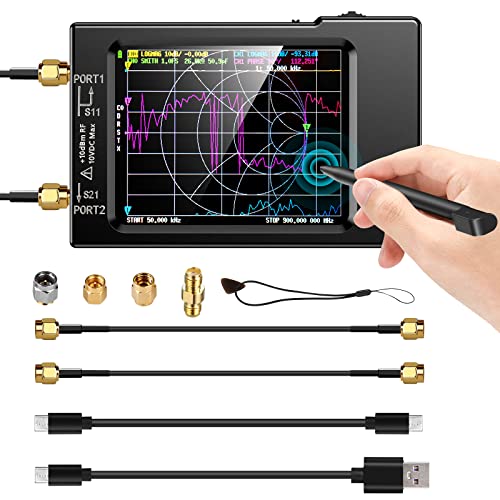

🎁[Complete VNA Set, Out of the Box]: With all the attachments, this antenna analyzer kit comes in quite a nice cardboard box. Inside content includes: 2.8 inch NanoVNA host (with battery) display x1, USB Type-C data cable x1, 30mm SMA male to male RG174 RF cable x2, SMA simple calibration kit x1, SMA female to female connector x1.
👍[Summarize the Above Information]: The newly upgraded NanoVNA-H is equipped with a compact 2.8 Inch display. A frequency sweep range of 10KHz-1.5GHz is available to meet your various measurement needs. High accuracy and built-in 650mAh rechargeable battery. This nanoVNA can be controled by PC using software VNA Saver. Detailed parameter information can be found on the product description page. Feel free to contact us with any questions.
