Elikliv TinySA Ultra Spectrum Analyzer with 25W Attenuator - 4.0 Inch 100kHz to 5.3GHz Handheld Tiny Frequency Analyzer, 2-in-1 Signal Generator 100kHz to 800MHz MF/HF/VHF UHF Input, V0.4.5.1

Elikliv TinySA Ultra Spectrum Analyzer with 25W Attenuator - 4.0 Inch 100kHz to 5.3GHz Handheld Tiny Frequency Analyzer, 2-in-1 Signal Generator 100kHz to 800MHz MF/HF/VHF UHF Input, V0.4.5.1

by kate-minimalist
$519.98 - $519.98
$519.98
$519.98 - $519.98
$519.98
  • 【Wide Frequency Range】: This newly upgraded TinySA Ultra spectrum analyzer produced by Hugen, features a large 4.0-inch 480*320 touchscreen that provides clear and detailed visualization. The tinysa spectrum analyzer can measure frequency range from 100kHz to 5.3GHz, spectrum analyzer range from 0.1-800MHz, and UHF mode up to 6GHz. The color display can show up to 450 scan points. The rf spectrum analyzer can meet your multiple measurement test needs.
  • 【Combined Spectrum Analyzer & Signal Generator】: In addition to its spectrum analysis purpose, the audio spectrum analyzer can also be used as a signal generator, outputting a sine wave in the range of 0.1-800MHz or a square wave/double-tone signal in the range of 4.4GHz. This spectrum analyzer has a mixed-signal output between 4.4GHz and 5.4GHz and a built-in calibration signal generator for automatic self-test and low-input calibration.
  • 【Convenient PC Control and Data Transfer】: When connected to a computer via USB, the antenna analyzer ham radio can be used as a PC-controlled frequency analyzer or signal generator. Tinysa-APP makes it easy to transfer data to a computer for enhanced analysis and control. The USB interface is compatible with the CDC protocol, facilitating command-based operation of measurements and internal settings.
  • 【Durable and Robust】: The upgraded tinysa analyzer has an internal 3000mAh rechargeable battery and the product comes with a Type-C charging cable. The spectrum analyzer handheld can be fully charged in 3 hours and continue to work for 8 hours. Its rugged construction ensures durability in different working environments.
  • 【Essential Items for Wireless Operation】: This spectrum analyzer is a perfect addition for unlimited manipulators and hobbyists, as it is very compact and convenient. You can use this analyzer to get a lot of information, connect it to your computer and get a .cal file of the desired frequency, which makes your work much easier and saves time.

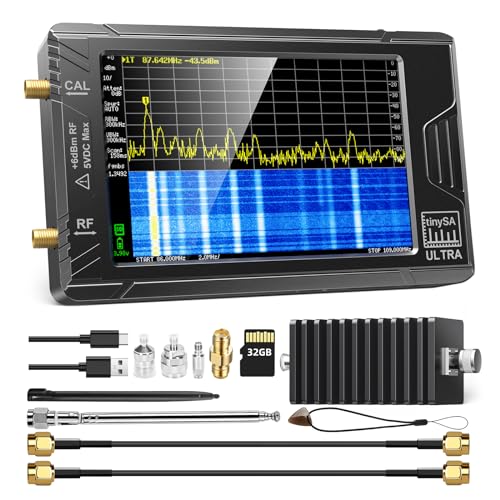

  • 【Package List】: 1 x Tinysa ULTRA Spectrum Analyzer; 2 x 30cm ALSR100 SMA cables; 1 x USB Type-C data cable; 1 x Antenna with SMA connector; 1 x TLanyard and touch plectrum; 1 x Antenna with SMA connector; 1 x 32GB MicroSD card(plugged in the host), 1 x Touchscreen pen, 1 x 25W Attenuator.
  • [With 25W Attenuator] : DC-3GHz 25W Coaxial Fixed Attenuator 10dB with N-male to N-female connector. VSWR: ≤ 1.20. Impedance:50 Ohm. Accuracy(dB): ±1.0.
