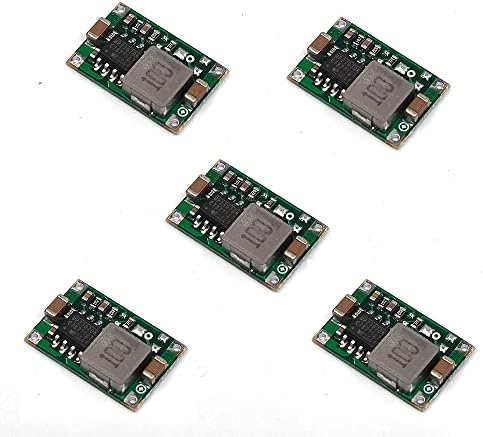

Mini 5pcs DC 4.75-23V to 3.3V Buck Converter Board - 1.8A Output, Small Size, Green

Name: Mini 5pcs DC 4.75-23V to 3.3V Buck Converter Board - 1.8A Output, Small Size, Green
Brand: Generic
Price: 34.99 USD
Availability: InStock

by Generic

$34.99 - $34.99

$34.99

$34.99 - $34.99

$34.99

Description

Very small size, length, width and height are 17*11*3.6mm，Input: 4.5V-24V,Output: 3.3V,
The maximum output current can reach 1.8A, when the output current is 1.5A, the output voltage is 3V
Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz
When using this module with an inductive load, please pay attention to the protection of the current in the rear stage. For example, when using a steering gear or a motor, a large ripple may be generated, which may affect the chips in the rear stage circuit. You can add Zener and capacitor for protection
Package: 5PCS 3.3V Buck Module
