Elikliv Upgraded 4.3" NanoVNA-F V2 Vector Network Analyzer, 50KHz -3GHz Latest V0.4.0 HF VHF UHF Antenna Analyzer Ham Radio, 5000mAh VNA Analyzer Measuring S Parameters, SWR, Phase, Delay, Smith Chart

Elikliv Upgraded 4.3" NanoVNA-F V2 Vector Network Analyzer, 50KHz -3GHz Latest V0.4.0 HF VHF UHF Antenna Analyzer Ham Radio, 5000mAh VNA Analyzer Measuring S Parameters, SWR, Phase, Delay, Smith Chart

by kate-minimalist
$249.98 - $249.98
$249.98
$249.98 - $249.98
$249.98
  • Upgraded NanoVNA-F V2:The nanovna features the latest firmware V0.4.0 and an optimized user interface compatible with the NanoVNA-F, ensuring a smooth experience. With a standard SMA RF interface for easy connection to various DUTs, this antenna tuner delivers efficient and stable measurements. Upgrade your measurement tool with the Elikliv Vector Network Analyzer
  • Wide Frequency Range:The vna analyzer offers an expanded measurement range of 50KHz to 3GHz, a significant upgrade from the previous 10KHz to 1.5GHz. With both TX and RX ports, the vna analyzer supports S11 and S21 measurements, enabling comprehensive analysis. This enhancement allows you to capture every detail with confidence
  • Improved Frequency Algorithm:Featuring odd harmonic extension of Si5351, this spectrum analyzer handheld delivers precise frequency measurements up to 3GHz. Dynamic ranges are impressive: S21 reaches 70dB at 1.5GHz and 60dB at 3GHz; S11 measures 50dB at 1.5GHz and 40dB at 3GHz, meeting all your tuning needs
  • Larger Touchscreen Display:The vna antena network analyzer features a large 4.3-inch 800x480 IPS LCD screen with an ultra-wide viewing angle for clear visibility. Adjustable brightness ensures readability even in bright sunlight. The eye-friendly design enhances comfort for long-term use, and responsive touch functionality improves your user experience
  • Enhanced Battery Life: The vna antenna analyzer is equipped with a high-capacity 5000mAh battery, offering up to 7 hours of continuous use—ideal for field measurements and troubleshooting. This long-lasting power lets you concentrate on your tasks without the need for frequent recharging
  • Support PC Control: This rf analyzer offers versatile connectivity with PC. Using the NanoVNASaver PC software, you can easily set start and stop frequencies, obtain measurement results, mark points, and take screenshots. Data can also be displayed and saved in Touchstone (SNP) file format
  • Sturdy and Durable Design: The nanovna antenna analyzer comes with a full aluminum alloy casing that provides exceptional durability and impact resistance. The lightweight yet sturdy aluminum not only enhances aesthetics but also effectively shields against electromagnetic interference, ensuring your measurement accuracy, whether in the shack or outdoors

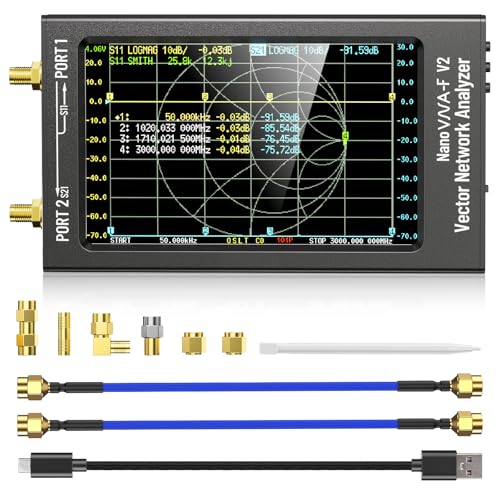

  • What is included in this nano vna antenna analyzer kit: 1x NanoVNA-F V2 analyzer, 2x 200mm SMA-JJ RG405 RF cables, 1x SMA right-angle connector, 1x SMA male connector, 1x SMA open connector, 1x 50Ω load, 1x SMA short connector, 1x SMA female connector, 1x stylus, and 1x USB Type-C data cable
