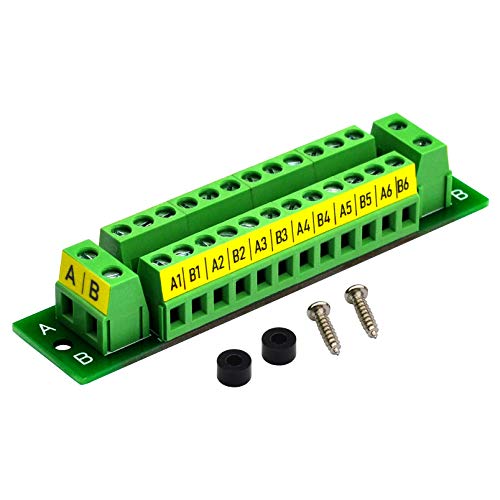

OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

by OONO
$34.99 - $34.99
$34.99
$34.99 - $34.99
$34.99
  • 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
  • Rated current 16 Amp(total input or output), Maximum voltage 48V
  • A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
  • A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
  • UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
