waveshare 2inch LCD Module Mini LCD Screen Compatible with Raspberry Pi/Ardu-ino/STM32, 240x320 Resolution IPS LCD Display, 262K RGB Color, Embedded ST7789VW Driver, SPI Interface

Name: waveshare 2inch LCD Module Mini LCD Screen Compatible with Raspberry Pi/Ardu-ino/STM32, 240x320 Resolution IPS LCD Display, 262K RGB Color, Embedded ST7789VW Driver, SPI Interface
Brand: waveshare
Price: 34.99 USD
Availability: InStock

by waveshare

$34.99 - $34.99

$34.99

$34.99 - $34.99

$34.99

Description

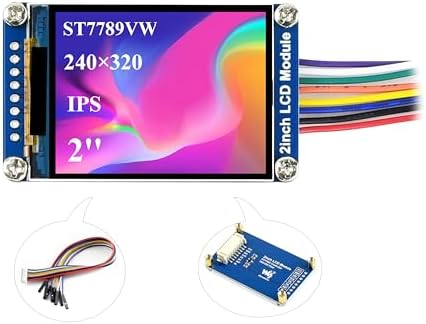

2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface,requires minimum GPIO for controlling.
Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly).
Display color: RGB, 262K color.Backlight: LED
Interface: SPI. LCD type: IPS. Driver: ST7789V. Resolution: 240(V) x 320 (H) RGB.
Display size: 30.60（H）x 40.80（V）mm. Pixel size: 0.0975（H）x 0.0975（V）mm. Dimension: 58 x 35 (mm).
Comes with Online Development Resources /User Manual: bit.ly/3TiYx7e
