Riverstone Audio Precision Record Level Turntable Stylus Tracking Force Pressure Gauge/Scale 100g, 0.005g Resolution (Graphite)

Riverstone Audio Precision Record Level Turntable Stylus Tracking Force Pressure Gauge/Scale 100g, 0.005g Resolution (Graphite)

by Riverstone Audio
$71.58 - $71.58
$71.58
$71.58 - $71.58
$71.58

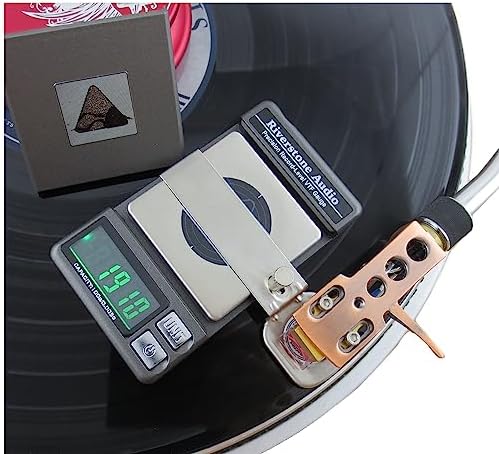

  • A Professional digital tracking force gauge designed for vinyl record purist's interested in precise measurement of vertical tracking force (VTF) at the correct vertical tracking angle (VTA). When used with the detachable cantilevered extension arm, the gauge closely approximates the vertical position of the stylus on the surface of a vinyl record when it is playing on a turntable- providing accurate “record-level” measurements of tracking force.
  • For optimal accuracy, tracking force should be measured at the same vertical position as the record surface. With Riverstone's VTF gauge's patented design (US Patent D878232), tracking force is measured 2 mm - 3 mm from the surface of a turntable mat - the height of a stylus tip resting on an LP record (LP's have a thickness range of 1.9 - 2.9 mm). With less expensive gauges, the measurement distance is typically 6 mm to 9 mm.
  • Precision strain gauge sensor provides 0.005 g measurement resolution and accurate measurements over the entire calibration range of the VTF gauge. To ensure accurate VTF measurement, our VTF gauges undergo a rigorous multi-point calibration procedure to verify the linearity, repeatability and accuracy of the VTF measurement. We have confidence in our gauges and provide TWO calibration masses (5g and 20g) to verify the readings at any time and also allow for future re-calibration if needed.
  • Manufactured using non-magnetic materials to minimize interactions with MM and MC cartridges. The housing of the VTF gauge is manufactured from a durable plastic. The cantilevered extension arm is made from a non-ferromagnetic grade stainless steel and the locking screw of the extension arm is made from brass. A polymer pad protects the stylus tip and allows stylus centering on the measurement platform.
  • Riverstone Audio Tracking Force Gauges are covered by our no-nonsense THREE-YEAR WARRANTY. The gauge is designed with two levels of battery protection, including auto-turnoff of the display and automatically powering off of the circuit after 60 to 120 seconds of inactivity. A detailed instruction manual (in English) is provided. Includes a tin storage box to protect the VTF gauge when not in use. PLEASE NOTE: *****Requires one AAA ALKALINE battery (SORRY, BATTERY IS NOT INCLUDED)*****.
